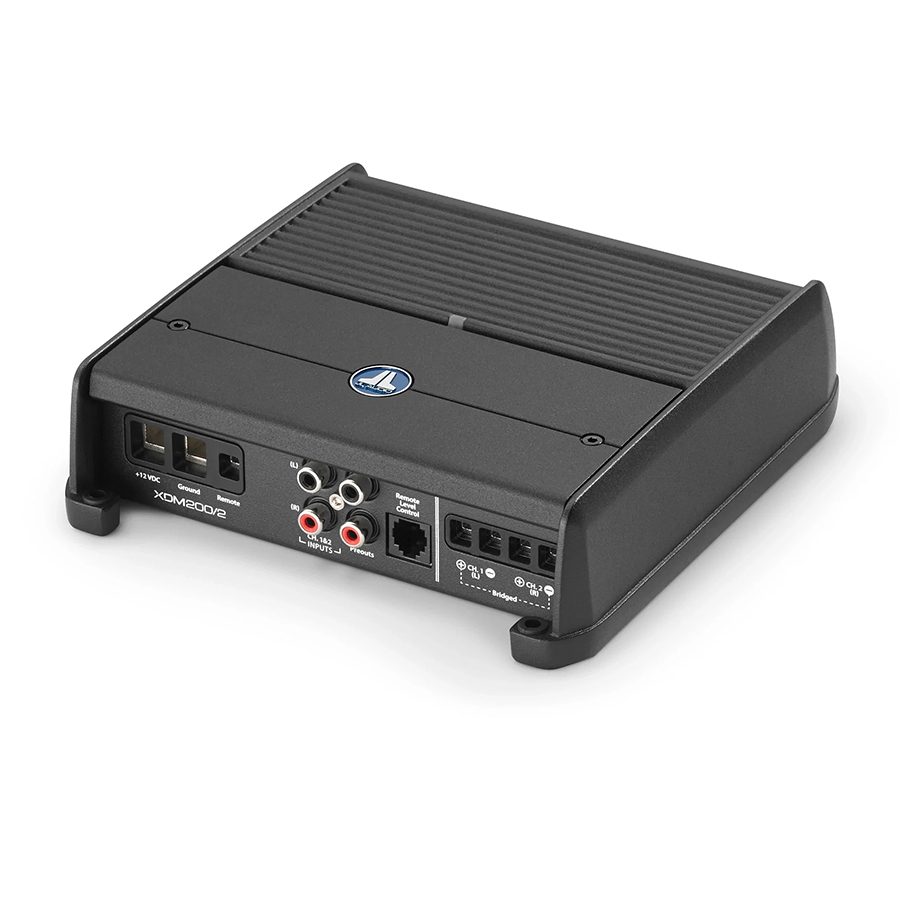

JL Audio XDM200/2 2 Ch. Class D, Full-Range Car/Marine Amplifier, 200 W
JL Audio XDM200/2 2 Ch. Class D, Full-Range Car/Marine Amplifier, 200 W
Call Store for Stock Availability
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 75 W RMS x 2
@ 2 Ω 100 W RMS x 2
Bridged @ 4Ω 200 W RMS x 1
Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 60 W RMS x 2
@ 2 Ω 90 W RMS x 2
Bridged @ 4Ω 180 W RMS x 1
General Specifications
Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω : >150 / 50 Hz
Damping Factor @ 2 Ω : >75 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge: 8 AWG wire
Fuse Rating: 20 A (AFS, AGU or MaxiFuse™)
Signal Processing
Filter Mode(s): Low-Pass or High-Pass
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: Yes
Filter Defeat Function: Yes
Remote Level Control : Optional HD-RLC or MHD-RLC (water-resistant)
Security Cover for Controls : Yes
Pass-Through Preamp Output: Buffered
