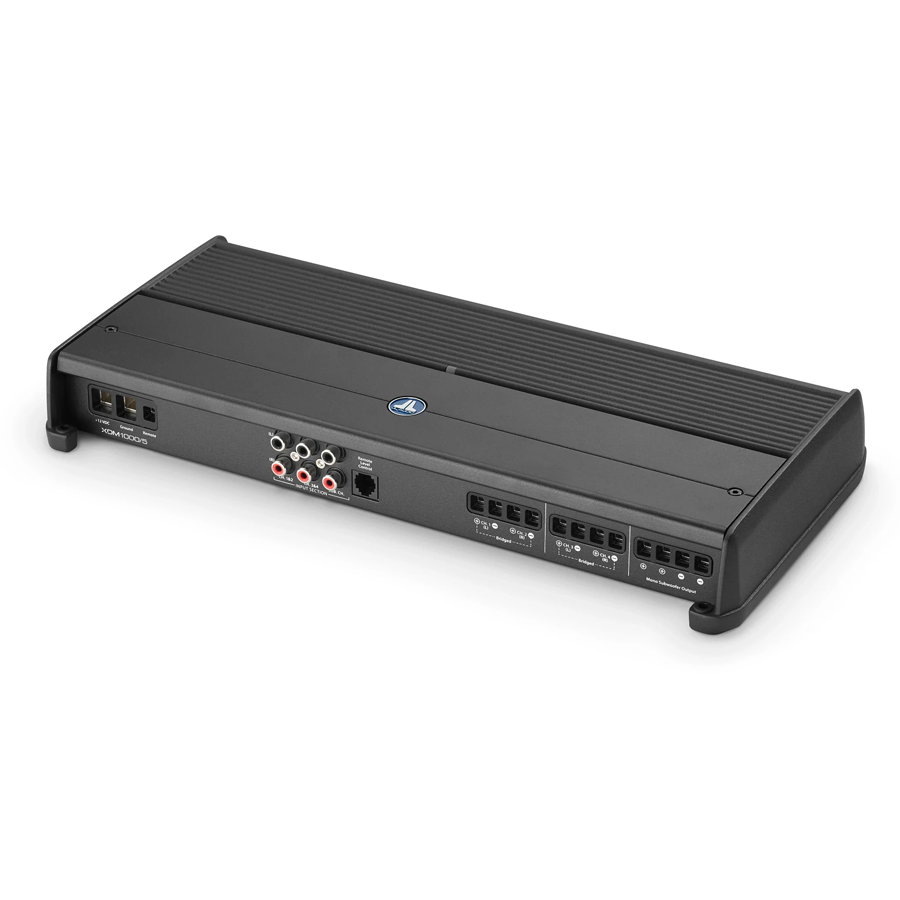

JL Audio XDM1000/5 5 Ch. Class D, Car/Marine System Amplifier, 1000 W

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 400 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 360 W RMS x 1
Subwoofer Channel @ 3 Ω 480 W RMS x 1
Subwoofer Channel @ 2 Ω 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

General Specifications
Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)

Signal Processing
Filter Mode(s): Channels 1 & 2 (front) High-Pass only
Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear) High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave
Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel Low-Pass only
Filter Slope(s): Subwoofer Channel 12/24 dB/octave
Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Infrasonic Filter: Subwoofer Channel none
Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes Sub Ch. or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A
